- Drive configuration
- 4×2
- Engine
- FAW CA6DM3
- Power
- 500 / 550PS
- Wheelbase
- 3,600mm

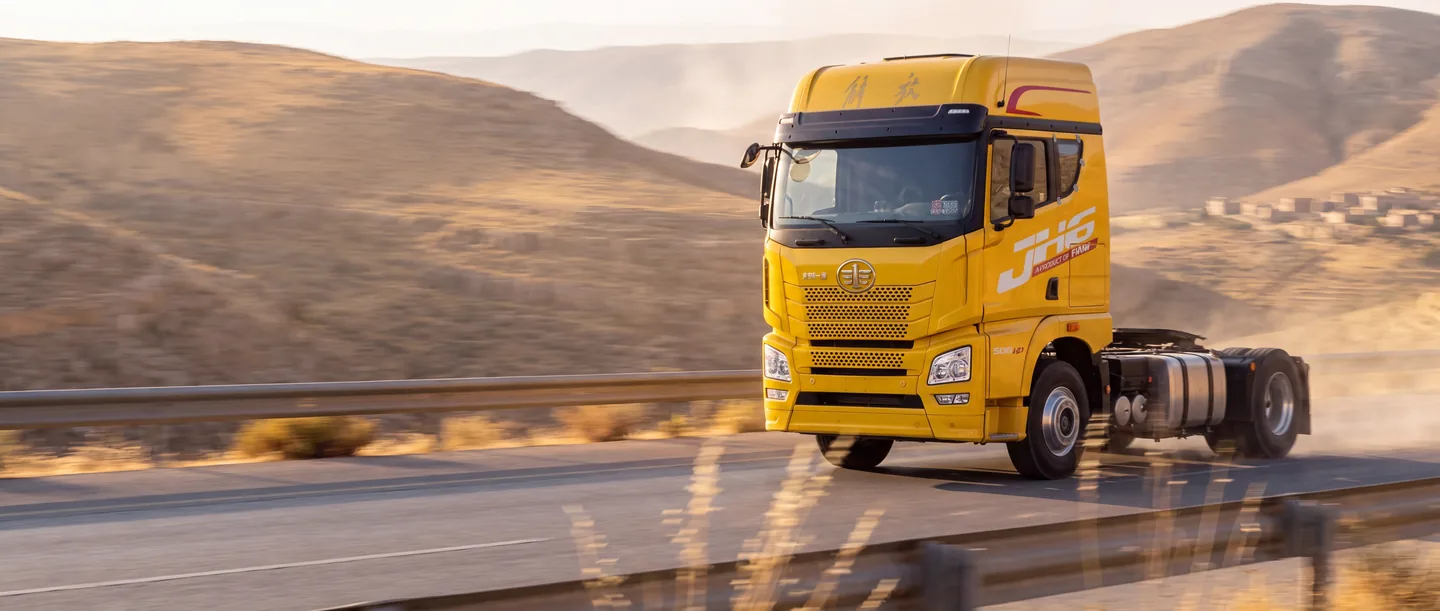

Tractor · JH6 series
Why the JH6
As one of the Jiefang star products, JH6 tractor has a high-end, bold and generous appearance. At the same time, multiple configurations of the vehicle are integrated to create the excellent performance.
High-strength longitudinal beam
The high-strength 700L steel, 15000 tons of rolling process and one-time molding of longitudinal beams are adopted, with the frame rigidity and strength leading in the industry.
All-steel cab
The all-steel fully enclosed cab meets the European standard ECE-R29 Occupant Protection Regulations; 100% rain test, effectively ensuring the tightness.
Power mirrors
The split power mirrors have the function of heating and defrosting so that users can feel the saloon experience.
Multi-specification frames
There are different specifications of single-layer plates and double-layer plates to meet various working conditions of lightweight or overload.
Technical specification
The figures, as text
Every figure below is FAW's own, transcribed from the 2024 catalogue as text. Select it, copy it, and pinch to zoom on a phone.
Engine
| Emission standard | Displacement | Model | Power | Torque |
|---|---|---|---|---|
| Euro V | 13L | FAW CA6DM3 | 500 / 550PS | 2,300 / 2,300 (2,600)N·m |
| Euro V | 12L | WP12 | 430 / 460PS | 2,060 / 2,110N·m |
| Euro V | 11L | FAW CA6DM2 | 390 / 420 / 460PS | 1,900 / 2,100 / 2,200N·m |
| Euro III | 12L | WP12 | 430 / 460PS | 2,060 / 2,110N·m |
| Euro III | 11L | FAW CA6DM2 | 390 / 420PS | 1,750 / 1,900N·m |
| Euro II | 13L | FAW CA6DM3 | 460PS | 2,200N·m |
| Euro II | 11L | FAW CA6DM2 | 390 / 420PS | 1,750 / 1,900N·m |
| NG | 13L | WP13NG | 430PS | 2,000N·m |
| NG | 12L | WP12NG | 380PS | 1,700N·m |
Gearbox
| Shift mode | Speeds | Model | Shell material | Torque | Direct / overspeed | 1st gear ratio | Top gear ratio |
|---|---|---|---|---|---|---|---|
| MT | 16-speed | ZF 16S | Aluminium | 2,200–2,500N·m | Overspeed | 13.80 | 0.84 |
| MT | 16-speed | FAST C16 | Aluminium | 1,800–2,600N·m | Overspeed | 14.13 | 0.83 |
| MT | 12-speed | FAW CA12TA | Aluminium / Iron | 1,900–2,600N·m | Overspeed | 12.19 | 0.78 |
| MT | 12-speed | FAST C12 | Aluminium | 1,800–2,600N·m | Overspeed | 12.26 | 0.78 |
| MT | 10-speed | FAW CA10TA | Iron | 1,300–2,000N·m | Overspeed | 10.96 | 0.74 |
| AMT | 12-speed | ZF 12TX | Aluminium | 2,400N·m | Direct | 16.69 | 1.00 |
| AMT | 12-speed | FAST F12 | Aluminium | 2,200–2,600N·m | Overspeed | 12.26 | 0.78 |
Drive axle
| Model | Type | Axle load | Torque | Speed ratio |
|---|---|---|---|---|
| 435 Upgrade Press Welding | Through | 11,500kg | 33,000N·m | 2.688 / 2.867 / 3.077 / 3.417 / 3.545 / 3.727 / 4.111 / 4.444 / 4.875 / 5.143 / 5.571 / 6.5 |
| 457 Upgrade Press Welding | Through | 13,000kg | 40,000N·m | 2.688 / 2.867 / 3.077 / 3.417 / 3.727 / 4.1 / 4.444 / 4.875 / 5.571 / 5.286 / 5.833 / 6.143 |
| 498 Upgrade Press Welding | Through | 13,000kg | 50,000N·m | 2.688 / 2.867 / 2.928 / 3.077 / 3.417 / 3.727 / 4.1 / 4.444 / 4.875 |
| 300 Wheel reduction | Through / Single-stage | 16,000kg | 60,000N·m | 4.805 / 5.263 / 5.921 / 6.733 |
Dimensions
| Configuration | Cab height | Wheelbase | Overall length | Overall width |
|---|---|---|---|---|
| 4×2 Composite version, flat floor, high / low roof | 3,960 / 3,705mm | 3,600mm | 6,126mm | 2,500mm |
| 6×4 Composite version, flat floor, high / low roof | 3,950 / 3,705mm | 3,300 + 1,350mm | 6,860mm | 2,500mm |
| 6×4 Composite version, traditional floor | 3,130mm | 3,300 + 1,350mm | 6,938mm | 2,500mm |
