- Cab width
- 2,010mm
- Cab inner height
- 1,876mm
- Power
- 350–550PS
- Rear axle rating
- 13–16t

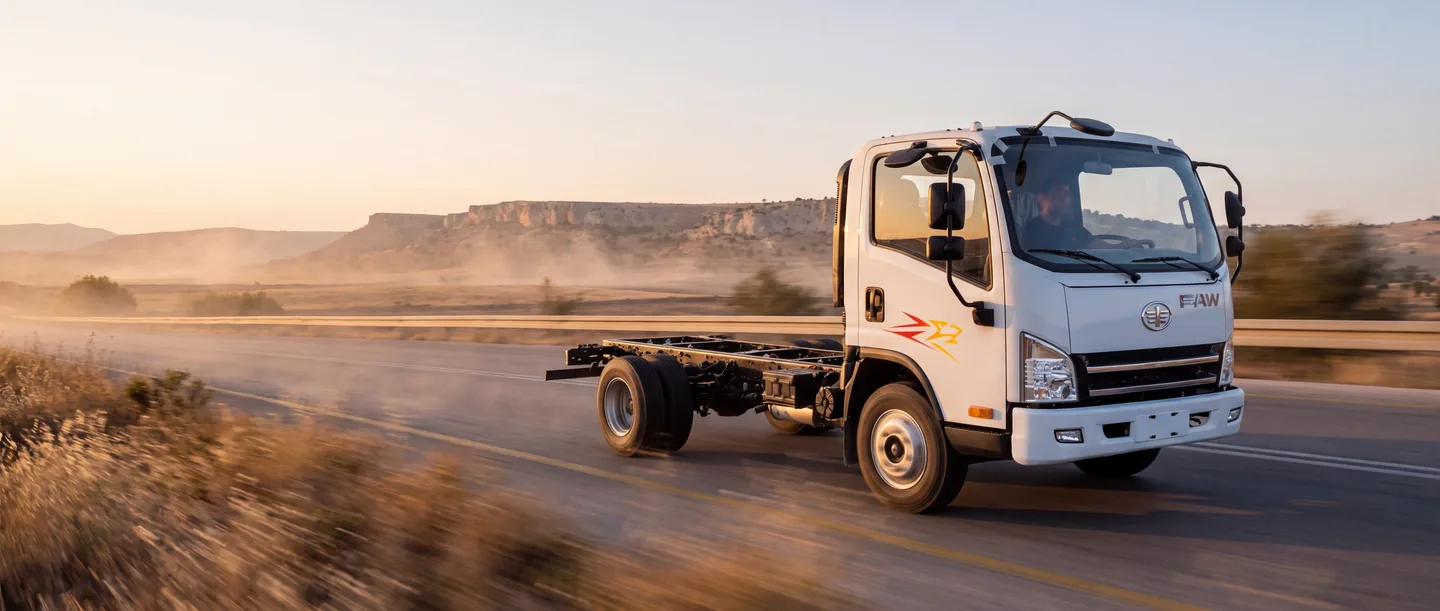

Rigid Truck · Tiger V series
Why the Tiger V
The Tiger V series inherits the excellent genes and reliable quality of FAW Trucks medium and heavy-duty trucks, and balances its technical qualities in the driver's cab, chassis, powertrain, and other aspects, providing reliable support for efficient urban transportation.
Full steel cab
The full steel cab meets the European ECER29 collision standard and has higher overall vehicle safety. The 865mm wide chassis makes the vehicle more stable.
Overall painting of chassis
With a three-layer paint film of primer, topcoat, and overall spray coating, the vehicle's weather resistance performance is greatly improved, effectively protecting the surface quality of the chassis.
High-strength longitudinal beam
Advanced rolling technology and high-strength plate are used to form the longitudinal beam and inner reinforcing plate in one step with a 15000-ton rolling machine. The structure and connection of the crossbeam and high-strength plate are reasonably arranged, and the strength and stiffness of the chassis are greatly improved.
Brake pressure
The working pressure of the brake system is above 900kPa, which results in greater brake pressure, shorter braking distance, and more timely braking.
Technical specification
The figures, as text
Every figure below is FAW's own, transcribed from the 2024 catalogue as text. Select it, copy it, and pinch to zoom on a phone.
Cab
| Item | Value |
|---|---|
| Cab body | Wide-body, 2,010 mm |
| Single row, basic | 1,876 mm high, 1,669 mm long |
| Single row, optional shroud | 2,478 mm high |
| Row and a half, basic | 2,049 mm high |
| Air deflector | Optional |
Engine
| Emission standard | Displacement | Model | Power | Torque |
|---|---|---|---|---|
| Euro V | 13L | CA6DM3-*E51 | 550 / 500PS | 2,600 / 2,500N·m |
| Euro V | 11L | CA6DM2-*E51 | 460 / 420 / 390PS | 2,100 / 2,100 / 1,900N·m |
| Euro V | 9L | CA6DL3-*E5 | 375 / 350PS | 1,650 / 1,650N·m |
| Euro II | 13L | CA6DM3-*E51 | 550 / 500PS | 2,600 / 2,500N·m |
| Euro II | 11L | CA6DM2-*E51 | 460 / 420 / 390PS | 2,100 / 2,100 / 1,900N·m |
| Euro II | 9L | CA6DL3-*E5 | 375 / 350PS | 1,650 / 1,650N·m |
Gearbox
| Model | Torque | Shift mode | Shell material | Direct / overspeed | 1st gear ratio | Top gear ratio |
|---|---|---|---|---|---|---|
| CA12TAX260M | 2,600N·m | MT | Aluminium | Overspeed | 12.189 | 0.783 |
| CA12TAX250M | 2,500N·m | MT | Aluminium | Overspeed | 12.189 | 0.783 |
| CA12TA(X)230M | 2,300N·m | MT | Aluminium / Iron | Direct | 15.575 | 1.000 |
| CA12TA(X)230M | 2,300N·m | MT | Aluminium / Iron | Overspeed | 12.189 | 0.783 |
| CA12TA(X)230A | 2,300N·m | AMT | Aluminium / Iron | Direct | 15.575 | 1.000 |
| CA12TA(X)230A | 2,300N·m | AMT | Aluminium / Iron | Overspeed | 12.189 | 0.783 |
| CA12TA(X)210 / 190 / 160M | 2,100 / 1,900 / 1,600N·m | MT | Aluminium / Iron | Direct | 15.535 | 1.000 |
| CA12TA(X)210 / 190 / 160M | 2,100 / 1,900 / 1,600N·m | MT | Aluminium / Iron | Overspeed | 12.189 | 0.783 |
| 16JSD240TA | 2,400N·m | MT | Iron | Overspeed | 14.030 | 0.830 |
| 12JSDX240TA | 2,400N·m | MT | Iron | Overspeed | 12.100 | 0.780 |
| 12JSD200TA / 180TA / 160TA | 2,000 / 1,800 / 1,600N·m | MT | Aluminium / Iron | Overspeed | 12.100 | 0.780 |
| ZF16S221OD | 2,500N·m | MT | Iron | Overspeed | 13.800 | 0.840 |
Drive axle
| Model | Type | Axle load | Torque | Speed ratio |
|---|---|---|---|---|
| R16T300W | Through | 16,000kg | 60,000N·m | 4.805 / 5.263 / 5.921 / 6.733 |
| R16D300W | Through | 16,000kg | 60,000N·m | 5.263 / 5.921 |
| R13D457 | Through / Single-stage | 13,000kg | 36,000N·m | 3.083 / 3.364 / 3.7 / 4.111 / 4.444 / 4.875 / 5.286 / 5.833 / 6.143 / 6.333 |
| R13D498 | Through | 13,000kg | 47,000N·m | 2.688 / 2.867 / 3.417 / 3.727 |
Chassis
| Item | Value |
|---|---|
| Chassis width | 865mm |
| Brake system working pressure | Above 900kPa |
| Cab standard | ECE-R29 |
| Paint film | Three layers: primer, topcoat, overall spray coating |
