- Drive configuration
- 6×4
- Power
- 500 / 550PS
- Body length
- 5,400–6,200mm
- Rear axle rating
- 16t

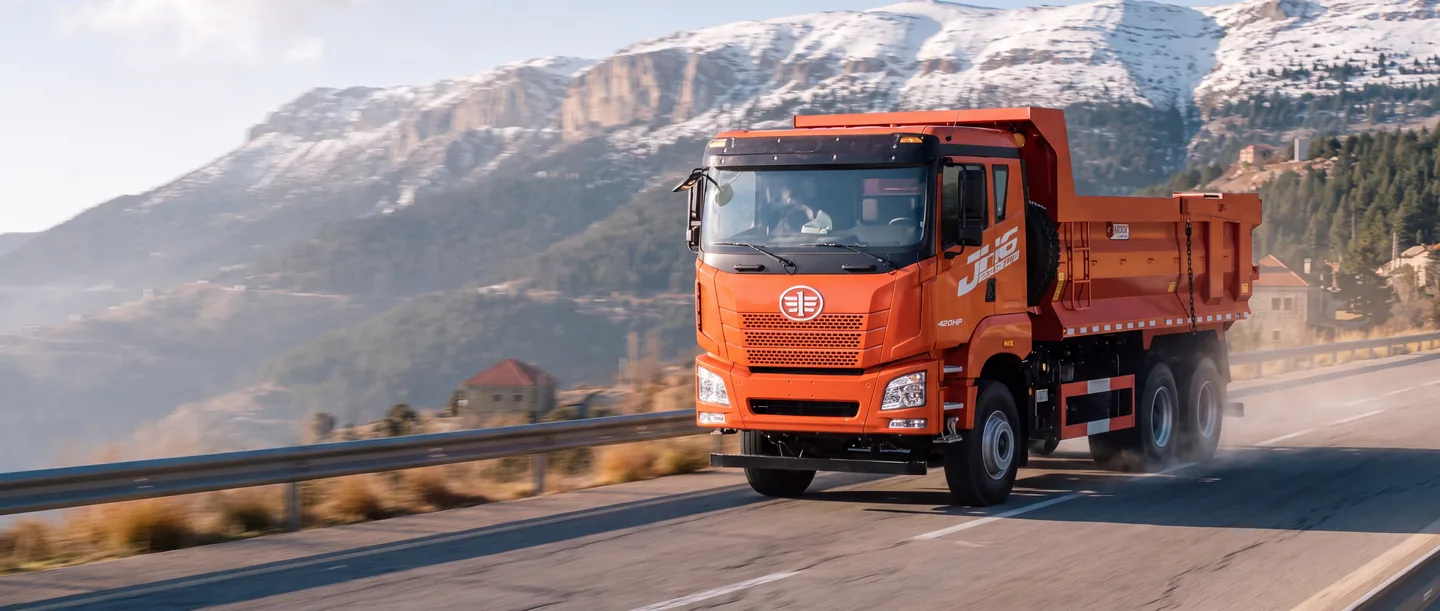

Dump Truck · JH6 series
Why the JH6
JH6 dump truck, as one of the star products of FAW Trucks, boasts a square and mighty appearance, a solid and reliable chassis, and excellent performance.
High-strength longitudinal beam
The high-strength 700L steel, 15000 tons of rolling process, one-time molding of the longitudinal beam are adopted, and the frame rigidity and strength are leading in the industry; there are different specifications of double-layer plates and three-layer plates, which can meet various working conditions such as urban construction slag, engineering materials, mining and so on.
High throughput
The ground clearance of key components is more than 610mm, and the minimum ground clearance is 314 mm, with the better throughput, which is more suitable for harsh dumping conditions.
All-steel cab
The all-steel fully enclosed cab meets the European standard ECE-R29 Occupant Protection Regulations; 100% rain test, effectively ensuring the tightness.
Strong braking force
The brake pressure is 12 bar, which is large. For mountainous and hilly conditions, the hydraulic retarder is optional, which makes the brake distance shorter and more timely.
Technical specification
The figures, as text
Every figure below is FAW's own, transcribed from the 2024 catalogue as text. Select it, copy it, and pinch to zoom on a phone.
Engine
| Emission standard | Displacement | Model | Power | Torque |
|---|---|---|---|---|
| Euro V | 13L | FAW CA6DM3 | 500 / 550PS | 2,300 / 2,300 (2,600)N·m |
| Euro V | 12L | WP12 | 430 / 460PS | 2,060 / 2,110N·m |
| Euro V | 11L | FAW CA6DM2 | 390 / 420 / 460PS | 1,900 / 2,100 / 2,200N·m |
| Euro V | 10L | WP10H | 375 / 400PS | 1,800 / 1,900N·m |
| Euro III | 12L | WP12 | 430 / 460PS | 2,060 / 2,110N·m |
| Euro III | 11L | FAW CA6DM2 | 390 / 420PS | 1,750 / 1,900N·m |
| Euro II | 12L | WP12 | 400 / 430PS | 1,800 / 2,000N·m |
| Euro II | 11L | FAW CA6DM2 | 390 / 420PS | 1,750 / 1,900N·m |
| Euro II | 10L | WP10 | 340 / 380PS | 1,400 / 1,600N·m |
| Euro II | 9L | FAW CA6DL2 | 350PS | 1,500N·m |
Gearbox
| Shift mode | Speeds | Model | Shell material | Torque | Direct / overspeed | 1st gear ratio | Top gear ratio |
|---|---|---|---|---|---|---|---|
| MT | 12-speed | FAW CA12TA | Iron | 1,900–2,600N·m | Direct | 15.58 | 1.00 |
| MT | 12-speed | FAW CA12TA | Iron | 1,900–2,600N·m | Overspeed | 12.19 | 0.78 |
| MT | 12-speed | FAST 12JSD | Iron | 1,600–2,400N·m | Direct | 15.53 | 1.00 |
| MT | 12-speed | FAST 12JSD | Iron | 1,600–2,400N·m | Overspeed | 12.10 | 0.78 |
| MT | 10-speed | FAW CA10TA | Iron | 1,300–2,000N·m | Direct | 14.73 | 1.00 |
| MT | 10-speed | FAW CA10TA | Iron | 1,300–2,000N·m | Overspeed | 10.96 | 0.74 |
Drive axle
| Model | Type | Axle load | Torque | Speed ratio |
|---|---|---|---|---|
| 300 cast steel / cast iron wheel reduction axle | Through | 16,000kg | 60,000N·m | 4.805 / 5.263 / 5.921 / 6.733 |
Dimensions
| Configuration | Body length | Body height | Wheelbase |
|---|---|---|---|
| 6×4 Composite version, traditional floor | 5,400–6,200mm | 1,800mm | 3,900 / 4,100 / 4,300mm |
| 8×4 Composite version, traditional floor | 6,800–8,200mm | 1,800mm | 3,400 / 3,800 / 4,200mm |
