- Drive configuration
- 8×4
- Engine
- FAW CA6DM3
- Wheelbase
- 3,350–4,850mm
- Rear axle rating
- 16t

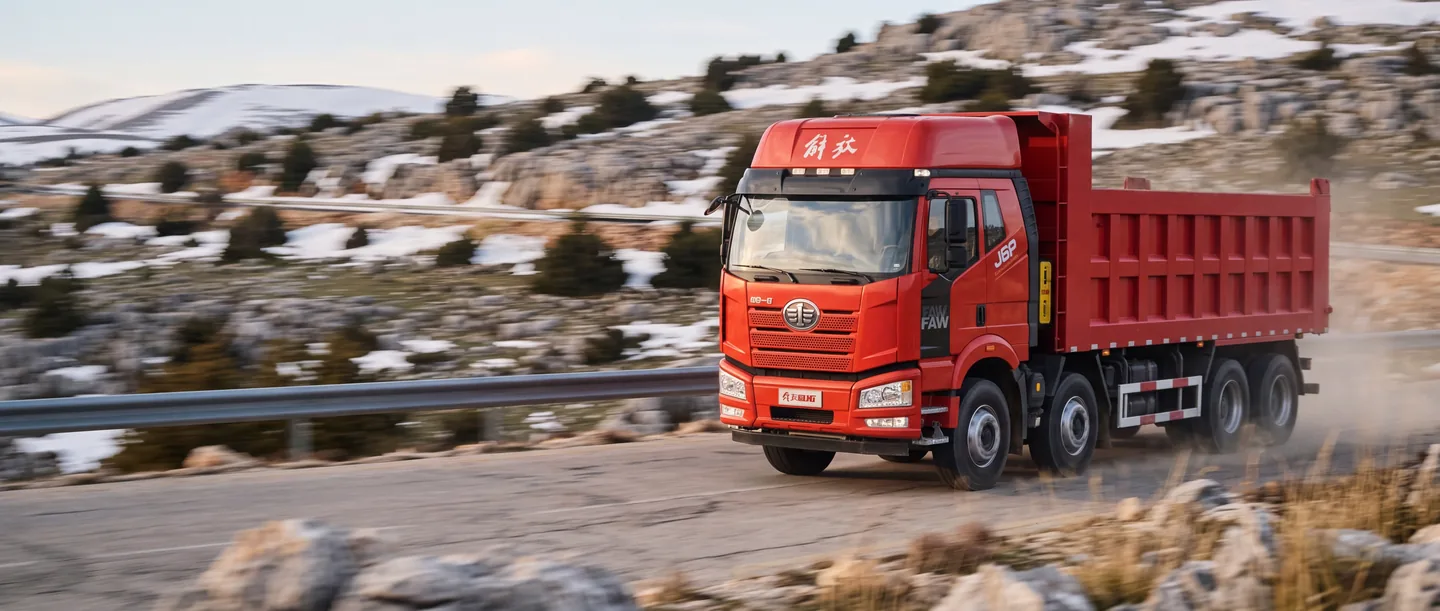

Dump Truck · J6P series
Why the J6P
The J6P dump truck cab inherits the classic shape, with a full appearance, strong lines and good safety and fuel economy.
Comfortable driving and riding
Large space double-layer sealing cab; with insulation pad to reduce radiation and noise; air shock absorption seats, four-point air suspension, optional independent heater, seat heating, ventilation, independent cold air, 220Ah battery, rain shield and screen window and other equipment provide you a comfortable mobile home.
Safety protection
Standardly equipped with FAWDE FCB (FAWDE CHAIN BRAKE) solid-chain brake system with good retarding performance to effectively shorten braking time and distance. The instrument panel is lowered to provide wider view. The front-view mirror is lengthened to reduce blind points to ensure safety.
Reliable performance
4U balance suspension and double I-pole V-shaped layout ensure stronger anti-rolling capacity, longer service life of ball joint, easier removal and installation and low maintenance cost; the design of frame belly connection makes a more reliable structure; standardly equipped desert air filter makes the dump trucks more suitable for the dusty and rough working conditions and helps well protect the engine.
Super carrying capacity
Unique 865 width 300x80 x (8+8) and 300x80x(8+8+5) three-layer through frame, made of high-strength special steel has strong carrying capacity.
Technical specification
The figures, as text
Every figure below is FAW's own, transcribed from the 2024 catalogue as text. Select it, copy it, and pinch to zoom on a phone.
Engine
| Emission standard | Displacement | Model | Power | Torque |
|---|---|---|---|---|
| Euro V | 13L | FAW CA6DM3 | 500 / 550PS | 2,300 / 2,300 (2,600)N·m |
| Euro V | 11L | FAW CA6DM2 | 390 / 420 / 460PS | 1,900 / 2,100 / 2,200N·m |
| Euro V | 9L | FAW CA6DL2 | 350 / 375PS | 1,500 / 1,550N·m |
| Euro II | 11L | FAW CA6DM2 | 390 / 420PS | 1,750 / 1,900N·m |
| Euro II | 9L | FAW CA6DL2 | 350PS | 1,500N·m |
Gearbox
| Shift mode | Speeds | Model | Shell material | Torque | Direct / overspeed | 1st gear ratio | Top gear ratio |
|---|---|---|---|---|---|---|---|
| MT | 12-speed | FAW CA12TA | Iron | 1,900–2,600N·m | Direct | 15.58 | 1.00 |
| MT | 12-speed | FAW CA12TA | Iron | 1,900–2,600N·m | Overspeed | 12.19 | 0.78 |
| MT | 12-speed | FAST 12JSD | Iron | 1,600–2,400N·m | Direct | 15.53 | 1.00 |
| MT | 12-speed | FAST 12JSD | Iron | 1,600–2,400N·m | Overspeed | 12.10 | 0.78 |
| MT | 10-speed | FAW CA10TA | Iron | 1,300–1,900N·m | Direct | 14.73 | 1.00 |
| MT | 10-speed | FAW CA10TA | Iron | 1,300–1,900N·m | Overspeed | 10.96 | 0.74 |
Drive axle
| Model | Type | Axle load | Torque | Speed ratio |
|---|---|---|---|---|
| 300 cast steel / cast iron wheel reduction axle | Through / Single-stage | 16,000kg | 60,000N·m | 4.805 / 5.263 / 5.921 / 6.733 |
Chassis
| Item | Value |
|---|---|
| Frame outer width | 865mm |
| Overall width, 6×4 | 2,549mm |
| Overall width, 8×4 | 2,495mm |
| Cab height | 3,220mm |
